0.6-1 KV 低压交联聚乙烯绝缘ABC-架空集束电缆-架空导体

内容:

0.6-1KV低压交联聚乙烯绝缘ABC-架空集束电缆-架空导体

架空集束电缆或导体（以下简称ABC电缆）是用一个或多个绝缘相导体紧密地捆在一起的架空电力线，通常具有裸中性导体。 ABC电缆是架空配电的一个非常新颖的概念。与传统的裸导体头部分配系统相比， ABC通过减少安装，维护和操作成本，提供更高的安全性和可靠性，更低的功率损耗和最终的系统经济性。该系统非常适合农村分布，特别适合安装在诸如丘陵地区，森林地区，沿海地区等困难地形中。

ABC电缆也被认为是拥有狭窄车道和车道的配电拥挤城市区域的最佳选择。在开发城市综合体时，由于城市发展计划变化所要求的重新布线灵活性，空中束缚电缆是更好的选择。

标准:

ABC电缆是根据工厂或供应商的GB12527-90,GB14049-93或企业标准生产的。
或查询相关的制造标准：IEC61089, ASTM B231, ASTM B232,BS215, DIN48201, DIN48204, ANSI/ICEA S-76-474

技术参数 :

型号	名称	应用范围
JKV	铜导体聚氯乙烯绝缘架空电缆	本产品适用于额定电压0.6 / 1KV及以下的架空配电线路作为固定敷设线或服务线。
JKLV	铝导体聚氯乙烯绝缘架空电缆
JKLHV	铝合金导体聚氯乙烯绝缘架空电缆
JKY	铜导体聚乙烯绝缘架空电缆
JKLY	铝导体聚乙烯护套电力电缆
JKLHY	铝合金导体聚乙烯绝缘架空电缆
JKYJ	铜导体交联聚乙烯绝缘架空电缆
JKLYJ	铝导体交联聚乙烯绝缘架空电缆
JKLHYJ	铝合金导体交联聚乙烯绝缘架空电缆

安装 :

交联聚乙烯或高密度聚乙烯绝缘电力铝导体（必要时为中性导体和街道照明导体）围绕高强度标准和镀锌钢（可使用铝合金）绝缘或裸露的通讯线铺设（扭曲）以形成ABC电缆。
XLPE（交联聚乙烯）绝缘材料为黑色，可以防止因暴露在直射阳光和紫外线辐射下而导致的劣化。 XLPE是可交联的低密度聚乙烯，由热塑性低密度聚乙烯基础聚合物的特殊配方热固化而成。交联聚乙烯结合了低密度聚乙烯的最佳电性能和卓越的热机械性能。

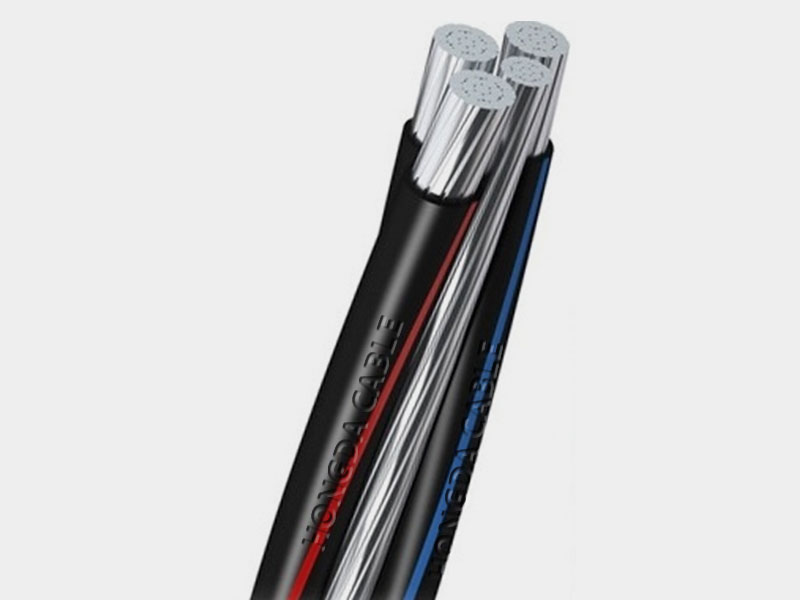

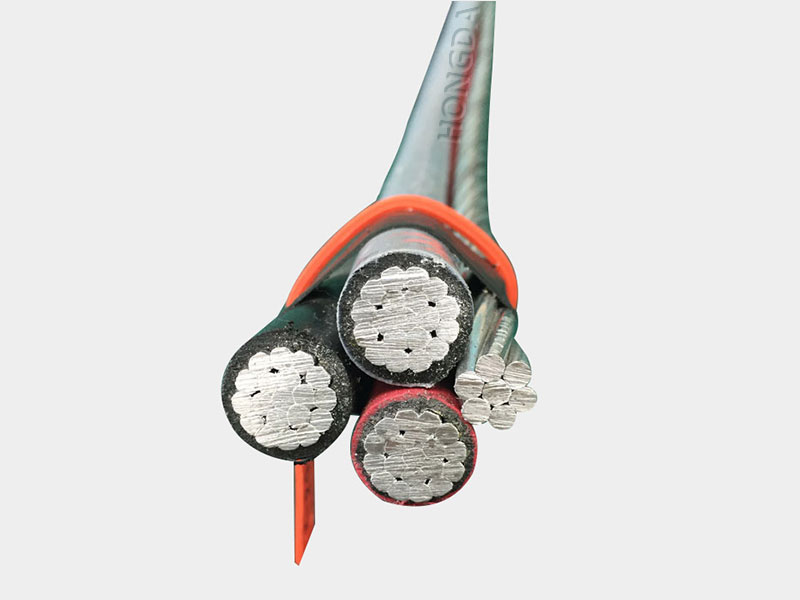

鉴于此，ABC电缆由相导体+一个路灯照明铝导体和XLPE绝缘（可选）+一个通讯铝合金导体（裸露或覆盖）组成
1. 相导体:
A). 导体数量：单芯或多芯
B). 导体：同心绞合或压缩的1350-H19导体（AAC）
C). 绝缘：交联聚乙烯或高密度聚乙烯绝缘。
2 信使导体:
导体：全铝合金导体（AAAC），钢芯铝绞线（ACSR）或镀锌钢丝信使线。
绝缘：信号导体可裸露或由交联聚乙烯或高密度聚乙烯绝缘层覆盖。
信使线的目的是
A) 它起承载线的作用。
B) 它充当接地或中性导体

工作电压和温度

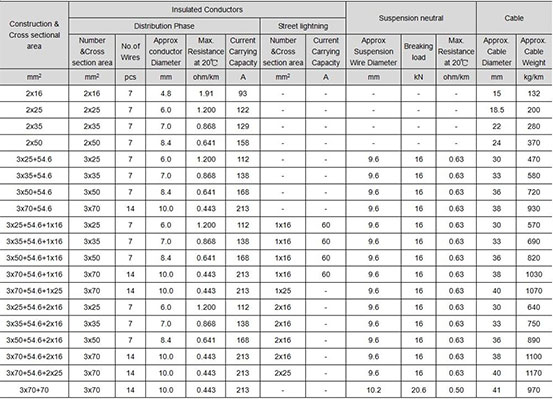

Technical Specification

应用 :

Low voltage ABC cable has already been developed in several countries across the globe. It has characters of power-transmitting and strong mechanical. In comparison with bare wire, ABC cable boasts many advantages, such as to be cheaper, safer, more reliable, require less tree clearing and pruning, be more aesthetic, be less labor intensive, require less maintenance and eliminate bushfires being initiated by conductor clashing. ABC cable has the priority to be used in urban and rural power-transmitting construction project.

ABC cable can be conveniently used:
As replacement of bare lines in Rural Areas, in woods and in other localities & narrows streets where the space limited.
As replacement of bare lines where reliability of supply is of prime importance.
As replacement of bare lines where high degree of stability of supply voltage is of importance.
In hilly terrains where cost of erection of overhead lines or under ground cable becomes very high.
As reinforcement of existing system without increasing voltage.
For temporary supplies.

Advantage :

In comparison to bare overhead power distribution lines, ABC has very high reliability in maintaining services because power and neutral conductors are insulated with the best dielectric medium, resulting in the following advantages:
Less fault rate on account of good protection against line and ground fault by high winds or falling trees or birds especially in hilly areas & forests as encountered in rural distribution networks.
High insulation resistance to earth in all seasons and polluted atmospheres. Negligible leakage currents and low losses.
Multiple circuits of Power and Telephone cables could be strung in the same set of poles or any other supports like walls etc.
Better adaptability to run concurrently with existing overhead bare conductor system without any interference.
High capacitance and low inductance leading to low impedance of lines.
Lower voltage drop, higher current capacities. VIS-À-VIS Better Voltage Regulation.
Longer spans and longer distance lines are possible with better system stability.
ABC cables are much safer than bare Conductors.
It can be over hung in dense vegetation and forests.
Additional connections can be easily and quickly made with hot – line connectors.
Total lines costs are reduced.
Maintenance is very easy.

包装与运输 :

Packaging Details

1. The wires and cables are usually packed in wooden drum, steel drum, or mixed steel and wood drum.
2. The usual size & pcs of delivery by 20 full container load:
Drum size: 0.7x0.7x0.7m Qty: 72 pcs, Drum size: 1.1x1.1x0.8m Qty: 28 pcs
Drum size: 1.8x1.8x1.1m Qty: 6 pcs, Drum size: 2.2x2.2x1.1m Qty: 5 pcs
3. The wooden drum adopted by us is usually fumigated and treated timber. Special size can be avialable details as reququest.

Delivery Time

Normally within 7 days(detailly depend on the order quantity)

Packing & Delivery
Wires and cables are usually supplied and delivered in wooden drum, steel drum, or mixed steel & wooden drum. The ends of cable are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
We meet the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority if any delay in the delivery.
