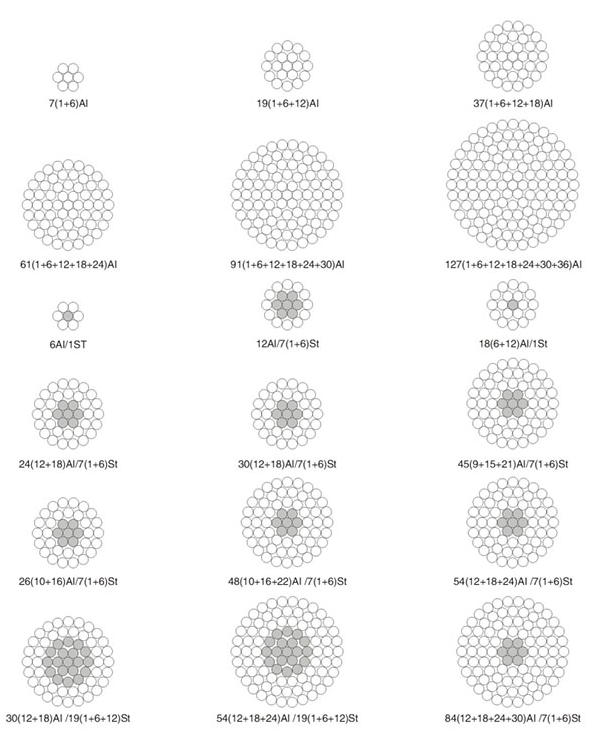

结构:
| 型号 |
A2 导体 |
A3 导体 |
最大导体直流电阻 20°C | ||||||||
| 丝根数 | 丝径 | 导体直径 | 近似重量 | 强度 | 丝根数 | 丝径 | 导体直径 | 近似重量 | 强度 | ||
| mm²
|
- |
mm |
mm |
kg/km |
daN |
- |
mm |
mm |
kg/km |
daN |
Ω/km |
|
16 |
7 | 1.83 | 5.49 |
50.4 |
5.43 |
|
50.8 |
6.04 |
50.8 |
6.04 |
1.7896 |
|
25 |
7 | 2.29 | 6.87 |
78.7 |
8.49 |
1.1453 |
79.5 |
9.44 |
79.5 |
9.44 |
1.1453 |
|
40 |
7 | 2.89 | 8.67 | 125.9 |
13.58 |
0.7158 |
127.1 |
15.1 |
127.1 |
15.1 |
0.7158 |
|
63 |
7 | 3.63 |
10.8 |
198.3 | 21.39 | 0.4545 | 200.2 | 23.06 | 200.2 | 23.06 | 0.4545 |
| 100 | 19 | 2.78 |
13.9 |
316.3 | 33.95 | 0.2877 | 319.3 | 37.76 | 319.3 | 37.76 | 0.2877 |
| 125 | 19 | 3.10 |
15.5 |
395.4 | 42.44 | 0.2302 | 399.2 | 47.20 | 399.2 | 47.20 | 0.2302 |
| 160 | 19 | 3.51 | 17.55 | 506.1 | 54.32 | 0.1798 | 511.0 | 58.56 | 511.0 | 58.56 | 0.1798 |
| 200 | 19 | 3.93 | 19.65 | 623.7 |
67.91 |
0.1439 | 638.7 | 73.20 | 638.7 | 73.20 | 0.1439 |
| 250 | 19 | 4.39 | 21.95 | 790.8 | 84.68 | 0.1151 | 798.4 | 91.50 | 798.4 | 91.50 | 0.1151 |
| 315 | 37 | 3.53 | 24.71 | 998.9 | 106.95 | 0.0916 | 1008.4 | 115.29 | 1008.4 | 115.29 | 0.0916 |
| 400 | 37 | 3.98 | 27.86 | 1268.4 | 135.81 | 0.0721 | 1280.5 | 146.4o | 1280.5 | 146.4o | 0.0721 |
| 450 | 37 | 4.22 | 29.54 | 1426.9 | 152.79 | 0.0641 | 1440.5 | 164.70 | 1440.5 | 164.70 | 0.0641 |
| 500 | 37 | 4.45 | 31.15 | 1585.5 | 169.76 | 0.0577 | 1600.6 | 183.00 | 1600.6 | 183.00 | 0.0577 |
| 560 | 61 | 3.67 | 33.03 | 1778.4 | 190.14 | 0.0516 | 1795.3 | 204.95 | 1795.3 | 204.95 | 0.0516 |
| 630 | 61 | 3.89 | 35.01 | 2000.7 | 213.90 | 0.0458 | 2019.8 | 230.58 | 2019.8 | 230.58 | 0.0458 |
| 710 | 61 | 4.13 | 37.17 | 2254.8 | 241.07 | 0.0407 | 2276.2 | 259.86 | 2276.2 | 259.86 | 0.0407 |
| 800 | 61 | 4.38 | 39.42 | 2540.6 | 271.62 | 0.0361 | 2564.8 | 282.80 | 2564.8 | 282.80 | 0.0361 |
| 900 | 91 | 3.81 | 41.91 | 2861.1 | 305.58 | 0.0632 | 2888.3 | 329.40 | 2888.3 | 329.40 | 0.0321 |
| 1000 | 91 | 4.01 | 44.11 | 3179.0 | 339.53 | 0.0289 | 3209.3 | 366.00 | 3209.3 | 366.00 | 0.0289 |
| 1120 | 91 | 4.25 | 46.75 | 3560.5 | 380.27 | 0.0258 | 3594.4 | 409.92 | 3594.4 | 409.92 | 0 0258 |
| 1250 | 91 | 4.49 | 49.39 | 3973.7 | 424.41 | 0 0231 |
- |
- |
- |
|
|
用作初次和二次配电的架空裸导线。设计采用高强度铝合金以获得高的强度与重量比；提供更好的凹陷特性。铝合金使铝合金绞线比钢芯铝绞线 具有更高的耐腐蚀性能。
