All Aluminum Alloy Conductors

Content:

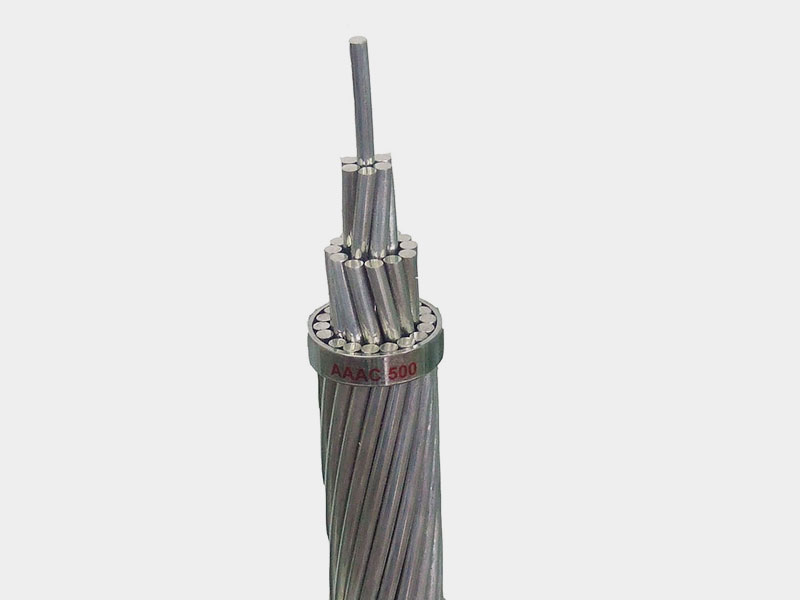

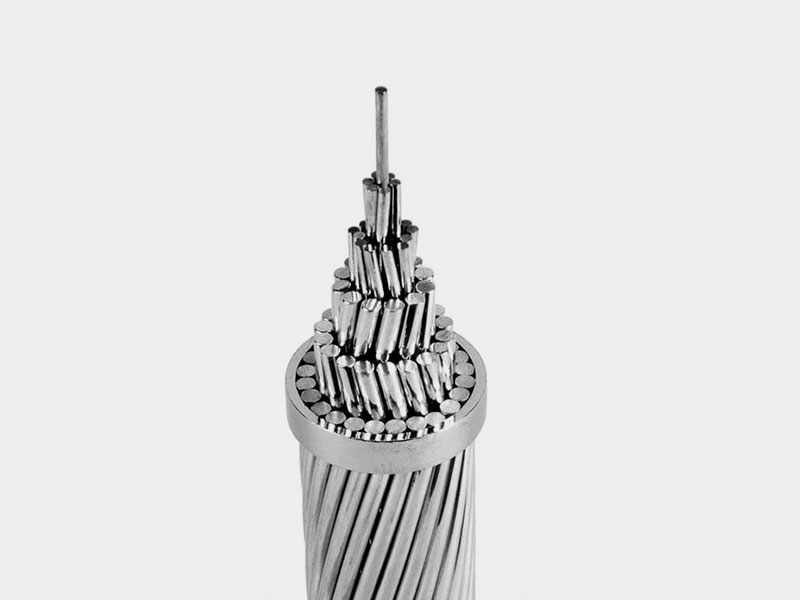

All Aluminum Alloy Conductors

Construction:

Standard 6201, 6101 aluminum alloy conductors, are concentric-lay- stranded, similar in construction and appearance to 1350 grade aluminum conductors. They were developed to fill the need for an economical conductor for overhead applications requiring higher strength than that obtainable with 1350 grade aluminum conductors, but without a steel core. The DC resistance at 20°C of the 6201,6101 conductors and of the standard ACSR of the same diameter are approximately the same. Conductors of the 6201,6101 alloys are harder and, therefore, have a greater resistance to abrasion than conductors of 1350-H19 grade aluminum.

Standards:

We can supply this conductor according to different recognized standards,
such as IEC61089, BS215,ASTM B231, CSA C49, DIN480201, JIS C3109, customers'
special specification also can be satisfied.

Properties：

AAAC has a good corrosion resistance due to being composed out of aluminum alloy wires only, minimum conductivity of 52% IACS,high breaking strength per weight and normal creep values. AAAC has the highest strength per weight among all bare overhead conductors.

技术参数 :

Code Number	A2 Conductor					A3 Conductor					Max.D.C. Resistance of Conductor at 20°C
Code Number	Number of Wires	Diameter of Wires	Diameter of Conductor	Approx. Weight	Rated Strength	Number of Wires	Diameter of Wires	Diameter of Conductor	Approx. Weight	Rated Strength	Max.D.C. Resistance of Conductor at 20°C
mm²	-	mm	mm	kg/km	daN	-	mm	mm	kg/km	daN	Ω/km
16	7	1.83	5.49	50.4	5.43		50.8	6.04	50.8	6.04	1.7896
25	7	2.29	6.87	78.7	8.49	1.1453	79.5	9.44	79.5	9.44	1.1453
40	7	2.89	8.67	125.9	13.58	0.7158	127.1	15.1	127.1	15.1	0.7158
63	7	3.63	10.8	198.3	21.39	0.4545	200.2	23.06	200.2	23.06	0.4545
100	19	2.78	13.9	316.3	33.95	0.2877	319.3	37.76	319.3	37.76	0.2877
125	19	3.10	15.5	395.4	42.44	0.2302	399.2	47.20	399.2	47.20	0.2302
160	19	3.51	17.55	506.1	54.32	0.1798	511.0	58.56	511.0	58.56	0.1798
200	19	3.93	19.65	623.7	67.91	0.1439	638.7	73.20	638.7	73.20	0.1439
250	19	4.39	21.95	790.8	84.68	0.1151	798.4	91.50	798.4	91.50	0.1151
315	37	3.53	24.71	998.9	106.95	0.0916	1008.4	115.29	1008.4	115.29	0.0916
400	37	3.98	27.86	1268.4	135.81	0.0721	1280.5	146.4o	1280.5	146.4o	0.0721
450	37	4.22	29.54	1426.9	152.79	0.0641	1440.5	164.70	1440.5	164.70	0.0641
500	37	4.45	31.15	1585.5	169.76	0.0577	1600.6	183.00	1600.6	183.00	0.0577
560	61	3.67	33.03	1778.4	190.14	0.0516	1795.3	204.95	1795.3	204.95	0.0516
630	61	3.89	35.01	2000.7	213.90	0.0458	2019.8	230.58	2019.8	230.58	0.0458
710	61	4.13	37.17	2254.8	241.07	0.0407	2276.2	259.86	2276.2	259.86	0.0407
800	61	4.38	39.42	2540.6	271.62	0.0361	2564.8	282.80	2564.8	282.80	0.0361
900	91	3.81	41.91	2861.1	305.58	0.0632	2888.3	329.40	2888.3	329.40	0.0321
1000	91	4.01	44.11	3179.0	339.53	0.0289	3209.3	366.00	3209.3	366.00	0.0289
1120	91	4.25	46.75	3560.5	380.27	0.0258	3594.4	409.92	3594.4	409.92	0 0258
1250	91	4.49	49.39	3973.7	424.41	0 0231	-	-	-

GB/T 1179-1999

Code Number	Stranding Wire Diameter		Approx	Sectional Area			Approx Weight	Breaking Load	DC Resistance
	Stranding Wire Diameter		Overall	Sectional Area
	Al	Steel	Diameter	Al	Steel	Total
	mm	mm	mm	mm 2	mm 2	mm 2	Kg/km	KN	Ohm/km
16	6/1.84	1/1.84	5.53	16	2.67	18.7	64.6	6.08	1.7934
25	6/2.30	1/2.30	6.91	25	4.17	29.2	100.9	9.13	1.1478
100	6/4.61	1/4.61	13.8	100	16.7	117	403.8	34.33	0.2869
125	18/2.97	1/2.97	14.9	125	6.94	132	397.9	29.17	0.2304
160	18/3.36	1/3.36	16.8	160	8.89	169	509.3	36.18	0.18
250	22/3.80	7/2.11	21.6	250	24.6	275	880.6	68.72	0.1154
400	54/3.07	7/3.07	27.6	400	51.9	452	1510.3	123.04	0.0723
450	54/3.26	7/3.26	29.3	450	58.3	508	1699.1	138.42	0.0643
500	54/3.43	7/3.43	30.9	500	64.8	565	1887.9	153.8	0.0578
560	54/3.63	19/2.18	32.7	560	70.9	631	2103.4	172.59	0.0516
630	54/3.85	19/2.31	34.7	630	79.8	710	2366.3	191.77	0.0459
710	54/4.09	19/2.45	36.8	710	89.9	800	2666.8	216.12	0.0407
800	72/3.76	7/2.51	37.6	800	34.6	835	2480.2	167.41	0.0361
900	72/3.99	7/2.66	39.9	900	39.9	939	2790.2	188.33	0.0321

安装 :

应用 :

The AAAC is used for overhead power transmission lines , especially the electric power augmentation of old transmission lines. We specialized in the research and application of AAAC for almost ten years. When replacing the aluminium conductor steel reinforced , the AAAC can save 5-8% of the construction cost. This AAAC covers aluminium alloy (hard solution, heat-treated, cold worked, and artifically aged) round wires for electrical purposes to be used as component wires of aluminium alloy conductor and aluminium alloy conductor steel reinforced.

包装与运输 :

Bare Conductor Types
(1) all aluminum conductor (AAC)
(2) all aluminum alloy conductor(AAAC)
(3) aluminum conductor steel reinforced (ACSR)
(4) anti-corrosion type ACSR
(5) aluminum conductor aluminum clad steel reinforced(ACSR/AW)
(6)rear earth aluminum conductor steel reinforced(ACSR/RE)
(7)aluminum conductor aluminum alloy reinforced(ACAR)
